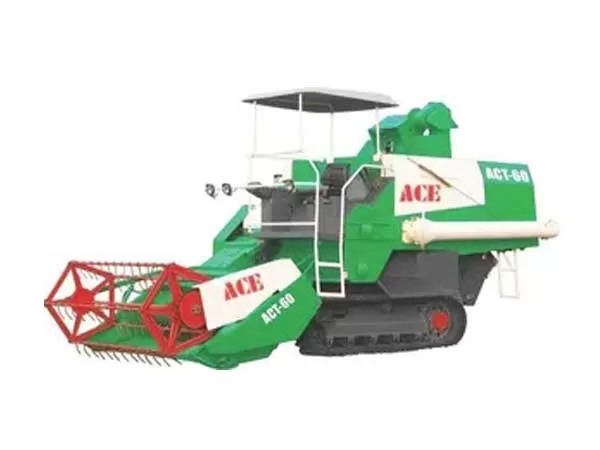

The ACE ACT-60 Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. ACE ACT-60 Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
| Technical Specification | |
| Model | ACE COMBINE ACT-60 |
| Engine | TATA 4SP RTV |
| Power (HP) | 62 @2800 |
| No. of Cylinders | 4 |
| Colling System | Water Cooed |
| Cutter Bar | |
| Cutting Width | 7/2100 |
| Height Adjustment | Hydrualic |
| Lift Height | 925 mm from Ground |
| Threshing | |
| Principle | TAF (Tangential Axial Flow) |
| System | A combination of Threshing & Sepratinf Rotor |
| Drum Diameter(mm) | 460 |
| Separating Section Width(mm) | 1230 |
| Width(mm) | 570 |
| Rotor Speed(rpm) | 500-1275 |
| Rice Concave | |
| Position of Lever in Quadrant | 5th Hole from back |
| Threshing Drum Concave Clearance | Entrance -13mm, Exit-6mm |
| Cleaning System | Forceed air cleaning Fan with two speeds 1200 and 1500 rpm. Volume of Air controlled by Fan Shutter |
| Cleaning Areas (Sq.mts.) | 1.6 |
| Transmission | Hydrostatic |
| Capacity | |
| Grain Tank | 1210 Lts Equivalent to APprox 10 Bags(700Kgs) of Paddy |
| Fuel Tank | 105 Lts. |
| Hydraulic Tank | 25 Lts. |
| Under Carriage | Rubber reinforced Tracks suitable for wet fields |
| Overall Dimension | |
| Weights (kgs) | 4400 |
| Length(mm) | 5810 |
| Width (mm) | 2560 |
| Height (mm) | 3020 (Including Canopy) |
| Ground Clearance | 435 |
