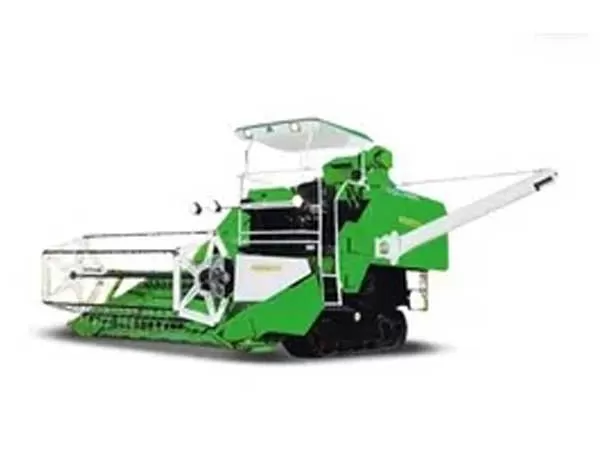

The Indo Farm AGRICOM 1070 Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. Indo Farm AGRICOM 1070 Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
| Technical Specification | |
| Standard Fitments Features | Details |
| Make | TATA 497 SP |
| No. of Cylinders | 4 |
| Power | 60 HP |
| Cooling System | Water Cooled |
| CUTTER BAR | |
| Cutting Width | 2100 mm |
| Height Adjustment | Hydraulic |
| Lift Height | 900 mm from ground |
| REEL | |
| Drive | Chain Drive |
| Height Adjustment | Hydraulic |
| THRESHING EQUIPMENT | |
| Drum Diameter | 450 mm |
| Threshing Section Width | 575 mm |
| Separating Section Width | 1225 mm |
| Rotor Speed | 500-1275 rpm |
| Speed Adjustment | Mechanical |
| RICE CONCAVE | |
| Position of Lever in Quadrant | 5th hole from back |
| Threshing Drum Clearance | 13 mm at Entrance |
| CLEANING | |
| Type | Forced Air Cleaning Fan |
| STEERING | |
| Type | Hydraulic |
| CAPACITY | |
| Fuel Tank | 105 Ltrs. |
| Grain Tank | 700 Kgs. of Paddy |
| TRACK | |
| Type | Rubber Reinforced |
| Make | Bridgestone |
| SPEED RANGE | |
| Speed | 0-10 km/h |
| DIMENSIONS | |
| Length | 5800 mm |
| Width | 2515 mm |
| Height | 3030 mm |
| Ground Clearance | 410 mm |
| Weight | 4550 Kgs. |
