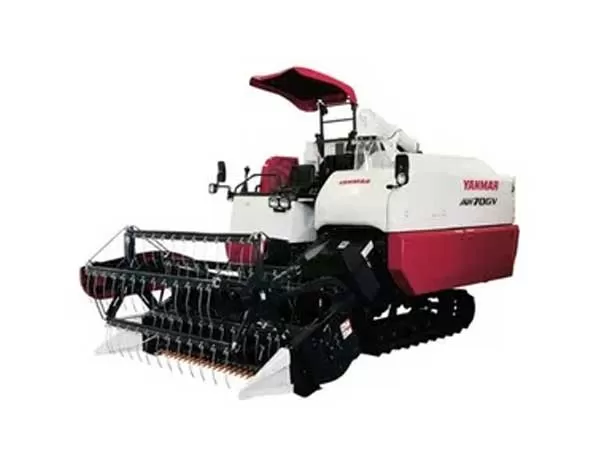

The Yanmar AW70GV Harvester is built to provide strong performance, effective harvesting and reliable operation as per the needs of today’s farming. This harvester is designed with innovative technology and robust components for smooth crop cutting, greater quality of grain and more output in the field. It is well-built and user-friendly, allowing for lengthy working hours in diverse agricultural circumstances. Farmers pick this harvester for its fuel efficiency, cheap maintenance and reliable field performance. Yanmar AW70GV Harvester is a good alternative to increase harvesting speed as well as overall agricultural efficiency.
|
Models
|
AW70V
|
|
|
Dimensions
|
L x W x H [mm]
|
5090 x 2300 x 2980
|
|
Weight [kg] Bare Combine Harvetser
|
3335
|
|
|
Engine
|
Model
|
4TNV98-ZCNRCC
|
|
Type
|
Water-cooled, 4 cycle, 4 cylinder - Diesel, DI, Natural Aspirated
|
|
|
Displacement [cc]
|
3318
|
|
|
Max. Output [h.p/kW @ rpm]
|
70/ 51.5 @ 2500rpm
|
|
|
Fuel
|
Diesel
|
|
|
Fuel Tank Capacity [Liters]
|
90
|
|
|
Starting method
|
Electric Start
|
|
|
Traveling Section
|
Full Rubber (Width × Ground Contact Length [mm])
|
500 × 1,700
|
|
Crawler (Ground Contact Pressure [Kg/cm2])
|
0.2
|
|
|
Mode of Speed Control
|
HST hydraulic
|
|
|
Range Shift Gear
|
3 gears
|
|
|
Traveling Speed(Forward) [km/h]
|
Low: 0 to 3.05, Midium: 0 to 5.02, High: 0 to 6.20
|
|
|
Reading Section
|
Cutter Bar Width [mm]
|
2055
|
|
Cutter Blade Width [mm]
|
1977
|
|
|
Cutting Height Range [mm]
|
-50 to 1,206
|
|
|
Reel (Diameter × Width [mm])
|
1,000 × 1,820
|
|
|
Threshing Section
|
Threshing Section Type
|
Axial-flow type longitudinally mounted front roller
Twin Rotor System(Front Rotor + Threshing Rotor) |
|
Front Rotor ( Diameter × Width [mm])
|
335 × 530
|
|
|
Threshing Roter (Diameter × Width [mm])
|
640 × 1,860
|
|
|
Swing Separator Size (Sieve box) : Width × Length [mm]
|
800 × 1,060
|
|
|
Concave Screen area [cm2]
|
15955
|
|
|
Grain
|
Tank Capacity [m2]
|
1.03
|
|
Output
|
Discharge Height [mm]
|
1,345 to 4,470
|
|
Discharge Distance(LHS / RHS) [mm]
|
1,395 / 4,470
|
|
|
Electrical system
|
12 Volt Battery for engine Starting Lighting Equipment & Alarms
|
|
|
Harvesting capacity [Wheat / paddy] [ha / h]
|
0.37 to 0.48 / 0.36 to 0.41
|
|
